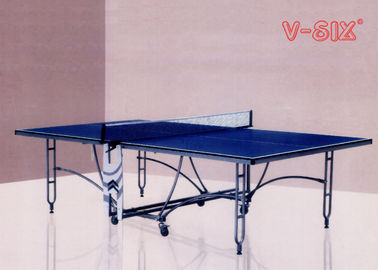

New Design Double Foldable Table Tennis Table More Stable For Indoor Recreation

New Design Double Foldable Table Tennis Table More Stable For Indoor Recreation

    • New Design Double Foldable Table Tennis Table More Stable For Indoor Recreation
    • New Design Double Foldable Table Tennis Table More Stable For Indoor Recreation
  • New Design Double Foldable Table Tennis Table More Stable For Indoor Recreation

    Product Details:

    Place of Origin: CHINA
    Brand Name: V-SIX
    Model Number: UA-6

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 PCS
    Price: Negotiation
    Packaging Details: Packing in one export carton
    Delivery Time: 30-45days
    Payment Terms: L/C , T/T
    Contact Now
    Detailed Product Description
    Product Name: Table Tennis Table Folding: Indoor Double Folding
    Material: MDF, Steel Feature: More Stable U Structure And Safe Bended U Form



    Product Name: Double Foldable Table Tennis Table More Stable New Design for Indoor Recreation





    UA-6series Introduction:



        This series not only have a stable "u" form structure and safe bended "u" form guides. It even replaces the traditional square tube legs into unique "Y" form legs. The double splints split the one contact point between the table board/leg into two to reduce the support pressure. This is not only a splendid new design, it also makes the table more stable.



    DOUBLE FOLDING TABLE



    ART NO. UA-601 UA-602 UA-603
    MATERIAL MDF MDF MDF
    TABLE SIZE (mm) 1525*2740*760 1525*2740*760 1525*2740*760
    TABLE THICKNESS 12mm 16mm 18mm
    HOLDER SIZE (mm) 15*30 15*30 20*30
    LEG SIZE (mm) 25*25 30*30 30*30
    WHEEL (mm) Φ75 Φ75 Φ75
    CARTON MEAS SIZE(mm) 1640*1460*110 1620*1460*120 1620*1460*150
    GROSS WEIGHT (KGS) 72 79 95
    NET WEIGHT (KGS) 67 76 90
    QUANTITY/20'/40'CTR 96/192PCS 96/192PCS 84/168PCS





    Production advantage:


    The Technical Feature of Roller-coating:


    Table Tennis Table is the product which we are wholly absorbed in, We adopt the most advanced

    roller-coating, which can prevent from dusting and spraying during production, in order to protect

    the workers and evironment. The MDF board must be graveled and then printed by roller-coating.

    So the painting can be poured neatly as much as 100%, while the painting thickness can be

    controlled pretty less than 1mm,so the surface is very smooth, which is less than 8 degree luminosity.

    and the friction coefficient is not more than 0.6.


    Technical Feature of Screen Printing:


    In printing the white line of the table, we adopt our special printing oil, and a better technic of Screen

    printing which is very flexible and can orient precisely. The line thus printed is very clear.It allows the

    ink to penetrate through the silk screen holes and the scraper assures the silk screen to contact

    closely with the table and print exactly on it.The high quality white PVC screen ink used is not easy

    to be damaged by scratching, peel off and go colorfast. The color can remain glossy and brilliant

    for as long as five to six years.


    Folding System:



    Single Folding Table

    Double Folding Table


    Locking System:



    As the basic standard, we equipped locks for every model of table to make sure customer

    is safe while using our table.

    For advancement, we have Lock Guard System(LGS) to provide and ease at opening

    and closing of table

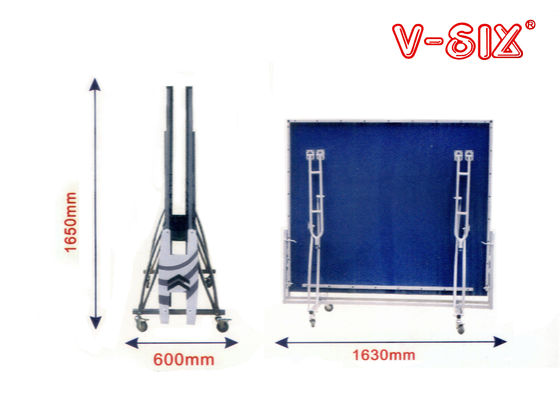

    Storage Ease:

    Storing the table can be a head-ache but we think of it to keep it minimal.


    Satety System:

    Some of our VSIX tables are in accordance with the European Standard EN14468-1.



    How to Choose our V-SIX Table:


    Table Top Board:

    Our board has various thickness, density and bounce are closely linked to each other.

    The more thicker board, the more uniform and consistent bounce it performs. MDF: thickness

    12mm, 15mm, 18mm, 25mm, medium density/hardness AP board: thickness 4mm, 6mm

    high density/hardness.


    Metal Frames:

    The frame increases the strength and provides even degree of flatness to the board. Our

    choosing of different thickness of frame is closely related to the thickness of table-top board.


    Coating Top:

    The repeat roller-coating (RRC) top enriches the quality of play, gives ball bounce more uniform.

    RRC applied 16 Layer of coating to provide a firm layer of surface which is used on our some

    models of table-top.


    Table Leg:

    The thickness/width of the legs is closely related to the stability of the table.By physical term,

    more thicker/wider more stronger.


    DBS and Dss carriage support:

    Diagonal bending support(DBS) and Diagonal straight support(DSS) provide the extra support

    of table in against unexpected excessive opposing force being applied.


    Wheel:

    A must-have item on each table. It allows you to roll-away the table easily. Various diameter of

    wheel and brakeable wheel available to choose.


    Screen-printed edge and lining:

    Our table-top lining and frame side logo printing are made by screen print technique. This technique

    gives the printed object to be equalized on the surface of the object. it is good against scratch, not

    easy being peeled or colour faded.


    Net Post Set:

    A selection of net post can go with the table. Please see our list for the post net.


    Outdoor Table:

    We have selected an innovative and genuine AP board material to manufacture our outdoor table.

    They are capable to be installed in various condition (sun, rain and cold weather). They are durable

    and provide a similar feeling to traditional table material.


    Indoor table:

    We use top quality multiple density fiber board(MDF) to manufacture our indoor table. Althouth it

    cannot stand for extreme weather condition but can gives excellent and consistent bounces

    throughout the table. This kind of table is suitable for competition or home use.



    New Design Double Foldable Table Tennis Table More Stable For Indoor Recreation
